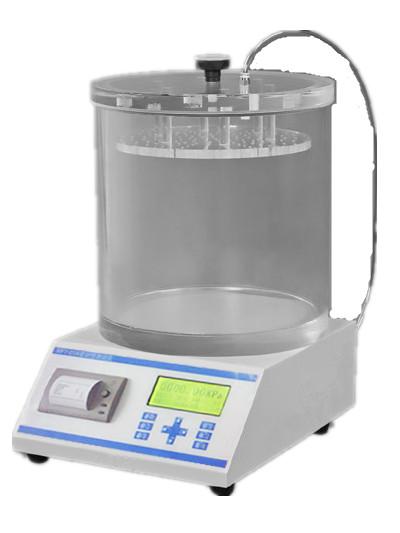

Seal Tester密封试验仪
Product model产品型号: MFY-3 (intelligent type) （智能型）
Product purpose产品用途: It is applicable to the seal test for the packing bag, bottle, pipe, jar and box in the field of the food, pharmacy, medical apparatus and instruments, daily chemical, automobile, electronic components, and stationery. In addition, it could test the seal performance of the test piece after the fall and pressure test.
适用于食品、制药、医疗器械、日化、汽车、电子元器件、文具等行业的包装袋、瓶、管、罐、盒等的密封试验。亦可进行经跌落、耐压试验后的试件的密封性能测试。
Product features产品特点;
1.It is controlled by microcomputer to realize the automation of the process.
1.微电脑控制，实验过程自动化
2.The LCD display mode makes the pressure and pressure maintenance time clear at a glance.
2.液晶显示方式，压力、保压时间一目了然
3.PVC operation panel with film membrane button makes the operation easier
3.PVC操作面板，薄膜按键，操作更方便
4.The seal barrel is made of thickened organic glass, whose wall thickness reaches 15mm.
4.优质增厚有机玻璃密封桶，壁厚15mm
5.Digitally preset the test vacuum degree and vacuum maintenance time
5.数字预置试验真空度及真空保持时间
6.The precision pneumatic component enjoys superior seal performance.
6.精密气动元件，密封性能优越
7.There is automatic constant pressure air supply requiring no manual operation.
7.自动恒压补气，无需手动操作
8.It is equipped with micro-printer, and the test result could be directly printed. 8.配置微型打印机，实验结果直接打印
Test rationale试验原理:
Vacuumize the vacuum chamber, such that the test piece dipped in the water could generate differential pressure inside and outside, observe the escape of the air within the test piece, so as to determine the seal performance of the test piece. Vacuumize the vacuum chamber, such that the test piece could generate differential pressure inside and outside, observe the swell of the test piece and the shape recovery of the test piece after releasing the vacuum, so as to determine the seal performance of the test piece.
通过对真空室抽真空，使浸在水中的试样产生内外压差，观测试样内气体外逸情况，以此判定试样的密封性能；通过对真空室抽真空，使试样产生内外压差，观测试样膨胀及释放真空后试样形状恢复情况，以此判定试样的密封性能。
Technical parameters技术参数:
1.Vacuum degree: -90～0kPa1.真 空 度： -90～0kPa
2. Display precision: 1%
2.显示精度： 1%
3. Pressure precision: 0.01
3.压力精度： 0.01
4. Size of vacuum chamber: Φ270mm×200mm (H) (standard configuration)
Note: other size could be customized
4.真空室尺寸： Φ270mm×200mm (H) （标配）
注：其他尺寸可定制。
5. Air supply pressure: 0.7MPa (users prepare the air source on their own)
5.气源压力： 0.7MPa （气源用户自备）
6. Air supply port: Φ6 PU pipe
6.气源接口： Φ6聚氨酯管
7. Outline dimension: 420mm(L)×320mm(B)×500mm(H)
7.外形尺寸： 420mm(L)×320mm(B)×500mm(H)
8. Power supply: AC 220V 50Hz
8.电 源： AC 220V 50Hz
9. Net weight: 12kg
9.净 重： 12kg
Standard configuration标准配置: mainframe+seal barrel for test+air supply line
主机+实验密封桶+气源线
Standards followed依据标准: GB/T 15171、ASTM D3078
GB/T 15171、ASTM D3078
